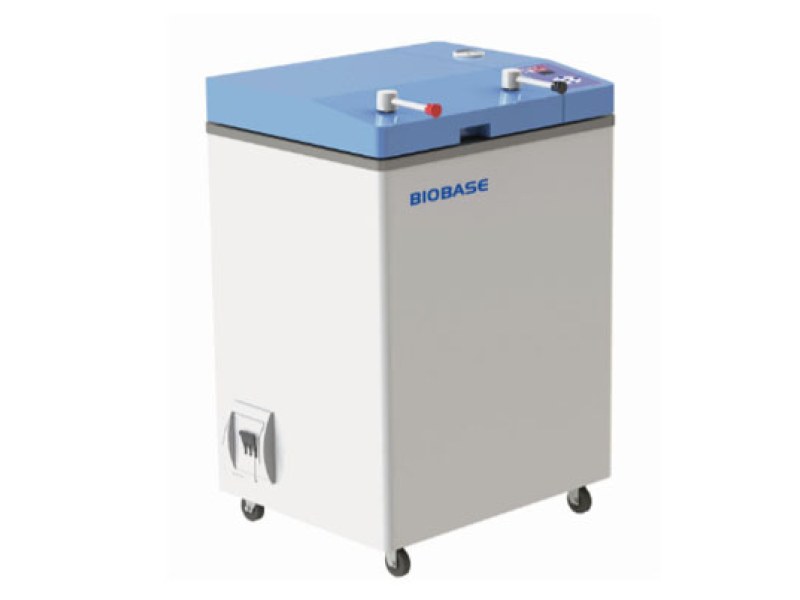

Vertical Steam Sterilizer BKQ-Z75I

BKQ-Z75I Vertical Steam Sterilizer is a high-performance 75-liter autoclave designed for safe, efficient, and convenient sterilization in laboratories, hospitals, research centers, and clinics. With its advanced microcomputer control system and user-friendly interface, it ensures reliable sterilization results with minimal manual operation.

Key Features

• Quick-Open Flip-Up Door: Innovative, labor-saving design for fast and easy access.
• Mobile and Adjustable: Equipped with universal wheels for effortless movement and positioning.
• Easy Maintenance: Quick access window allows service of electrical components without removing the cover.
• Built-in Steam Generation: No external steam source required — generates steam internally for greater convenience.
• Multiple Sterilization Programs: Pre-set modes for instruments, dressings, rubber materials, liquids, and customizable cycles.
• Durable Silicone Seal: Self-expanding medical-grade silicone ring provides excellent sealing and long lifespan.
• Precise Temperature Control: Real-time monitoring with ±0.1°C accuracy ensures reliable sterilization performance.
• Clear LED Display: Shows temperature, time, alarm codes, and operation status at a glance.
• Smart Automatic Operation: Microcomputer-controlled heating, sterilization, and exhaust for simple, automated use.
• Efficient Air Removal: Combines gravity displacement and positive pressure pulsation for optimal steam penetration.
• Easy Water Filling: Manual water addition saves time and simplifies the process.
• Printer Option: Optional printer records temperature and cycle data for traceability.

Technical Specifications

• Model: BKQ-Z75I
• Chamber Capacity: 75 L
• Working Pressure: 0.23 MPa
• Working Temperature: 105 – 136 °C
• Temperature Precision: 0.1 °C
• Chamber Material: S30408 stainless steel
• Chamber Size: φ385 × 715 mm
• Basket Dimensions: φ365 × 265 mm × 2 pcs
• Noise Level: ≤ 65 dB
• Power Consumption: 4 kW
• Power Supply: AC 220 V, 50/60 Hz (optional 110 V)
• External Dimensions (W × D × H): 645 × 610 × 945 mm
• Net Weight: 98 kg

BKQ-Z75I offers an ideal balance of performance, durability, and ease of operation — a perfect solution for laboratories and healthcare facilities that require reliable, high-capacity steam sterilization.
