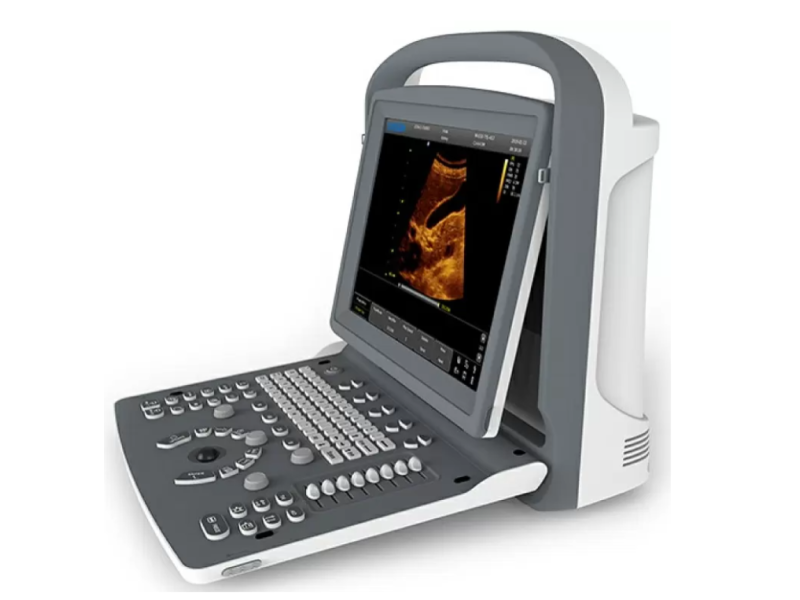

Chison ECO2 Portable Ultrasound

The CHISON ECO 2 is a cutting-edge portable ultrasound system that redefines efficiency and diagnostic precision in its class. Building on the solid foundation of the Eco 1, the ECO 2 introduces Power Doppler and Pulse Wave (PW) Doppler capabilities, enabling clinicians to perform detailed hemodynamic assessments and blood flow measurements with ease.

Advanced Imaging Technology

Equipped with the latest Multiple Beam Forming technology, the ECO 2 delivers superior resolution and higher frame rates compared to conventional systems. The diagnostic clarity is further enhanced by a suite of advanced image processing filters:

• SRA (Speckle Reduction Algorithm): Eliminates noise and artifacts for sharper tissue differentiation.

• Compound Imaging: Enhances spatial resolution through multi-angle scanning.

• THI (Tissue Harmonic Imaging): Provides better contrast resolution and image transition.

• AIO (Automatic Image Optimization): One-touch image adjustment for a streamlined clinical workflow.

Technical Specifications & Clinical Features

1. Versatile Diagnostic Modes

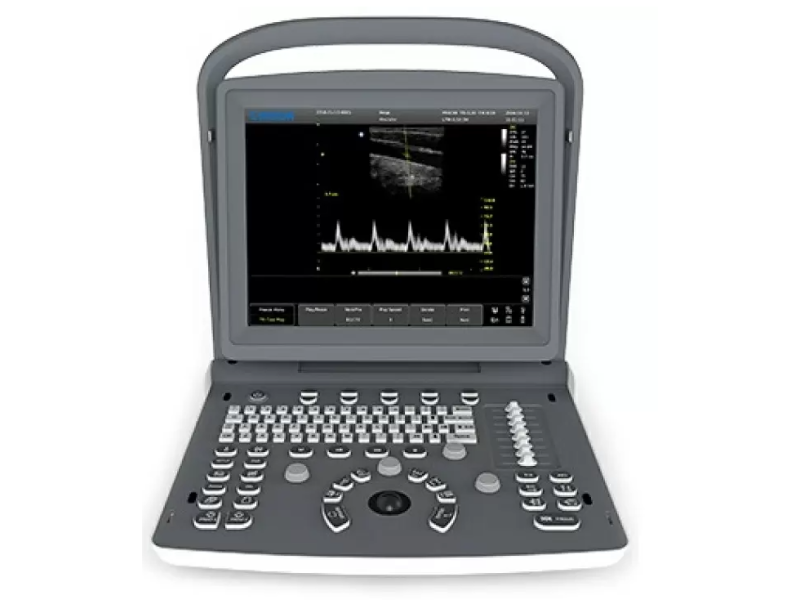

• Imaging Modes: 2D (B-mode), 2B (Dual), 4B (Quad), M-mode, B/M, Power Doppler (PD), and Pulse Wave (PW) Doppler.

• Gray Scale: 256 levels for nuanced grayscale imaging.

• Scanning Depth: Up to 24cm (probe dependent), suitable for various clinical applications.

2. Ergonomic & User-Centric Design

• 12-inch High-Definition LED Monitor: Features a wide viewing angle and a specialized protective filter.

• Tiltable Display: Adjustable from 0 to 30 degrees to ensure optimal viewing comfort.

• Backlit Keyboard: A full alphanumeric, illuminated keyboard allows for seamless operation in low-light environments.

• Extreme Portability: Ultra-lightweight design with an optional internal battery (2-hour autonomy), making it perfect for point-of-care and mobile diagnostics.

3. High-Performance Transducers

The system supports a wide range of multi-frequency probes (2.5MHz – 11.0MHz) designed with reinforced housing and lightweight, flexible cables:

• Convex: Abdominal and OB/GYN applications.

• Linear: Small parts, vascular, and musculoskeletal (MSK) imaging.

• Transvaginal/Endocavity: Specialized gynecological and urological scans.

• Micro-convex: Pediatric and veterinary use.

• Biopsy kits are available for compatible probes.

Connectivity & Data Management

The CHISON ECO 2 is built for the digital age, offering comprehensive archival and export options:

• Patient Management: Easy archiving of images, videos (Cineloop), and clinical reports.

• High-Speed I/O: 3 x USB 3.0 ports for fast data transfer to external flash drives.

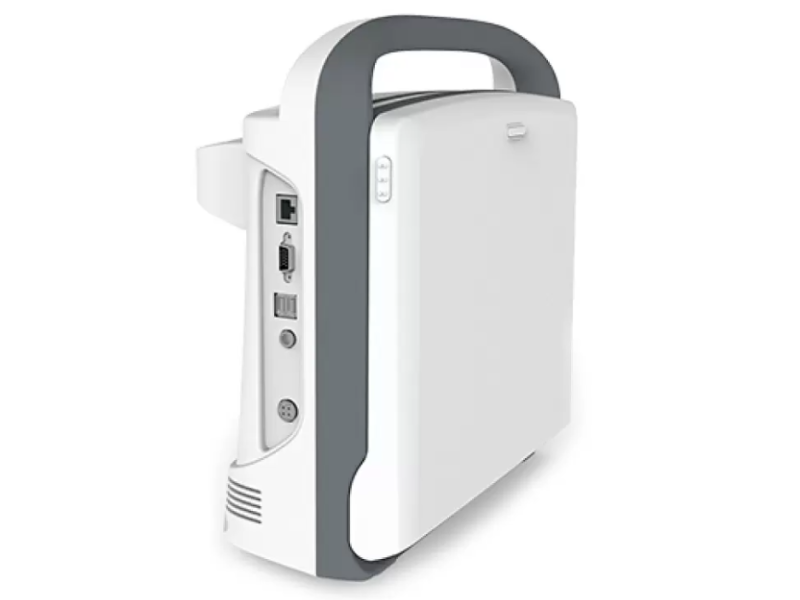

• Peripheral Support: VGA, BNC, LAN, and Foot Switch ports.

• Printing: Compatible with thermal roll printers and standard PC printers (A4) for comprehensive report printing including images and measurements.

Why Choose the CHISON ECO 2?

The ECO 2 combines an intuitive workflow with scientific accuracy. Whether used as a portable handheld unit in a carrying case or mounted on a dedicated trolley to function as a stationary console, it offers unmatched versatility. Furthermore, its eco-friendly design ensures minimal power consumption without compromising performance.
