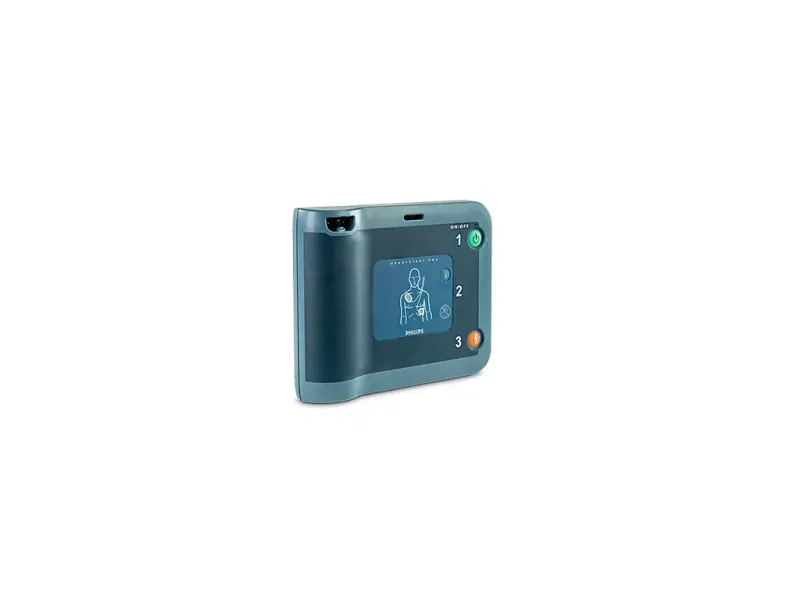

Automatic Defibrillator Rescue HeartStart HeartStart FRx AED

The Philips HeartStart FRx Defibrillator is designed to guide rescuers through the treatment of suspected sudden cardiac arrest (SCA) with clear, intuitive, step-by-step voice instructions. It includes CPR coaching and an audible metronome to support Basic Life Support (BLS) responders during resuscitation.

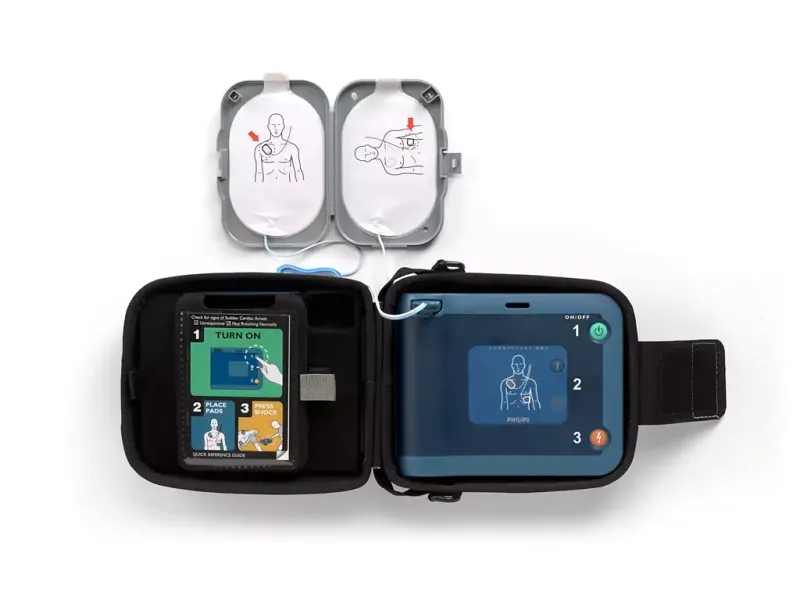

Pre-connected SMART Pads II can be used for both adults and children, eliminating the need for separate pads. Rugged, lightweight, and reliable, the FRx is built to withstand rough handling and extreme environments. When every second matters, the Philips HeartStart FRx stands by your side — step by step.

Key Features

Patented Technology - Proven Therapy

Real-time, step-by-step voice instructions are paced to your actions, while CPR guidance and an audible metronome assist rescuers throughout the process. For infant or child treatment, simply insert the optional Infant/Child Key and the FRx automatically adjusts instructions and therapy levels.

Easy as 1–2–3

The patented Quick Shock feature enables the FRx to typically deliver a shock within 8 seconds after CPR. Studies indicate that minimizing the time to shock after CPR may improve survival rates.

1. Press the green On/Off button to activate voice instructions and visual prompts.

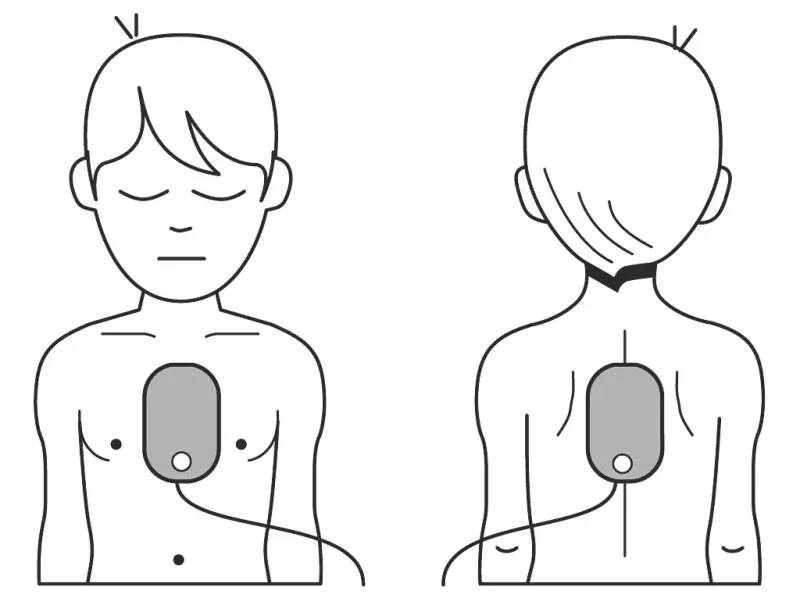

2. Place the pads on the patient as illustrated.
3. When prompted, press the orange Shock button.

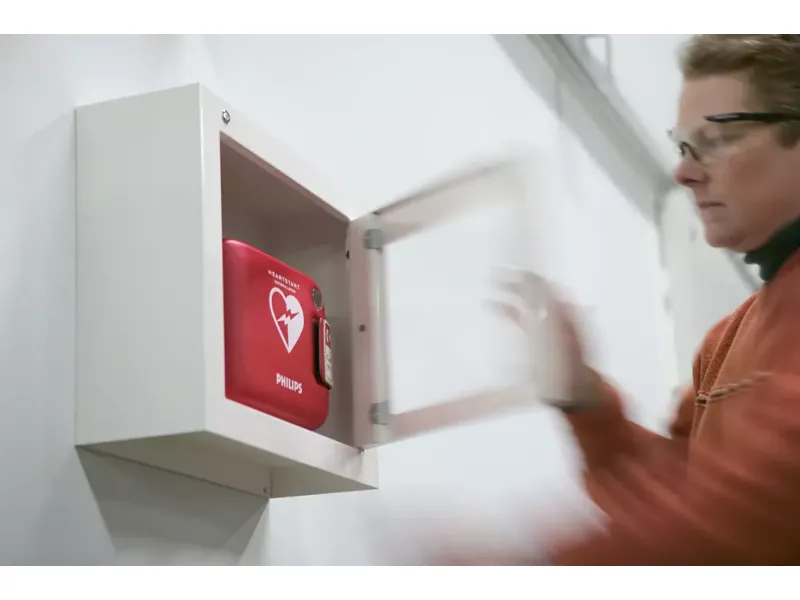

Designed to Perform Wherever Needed

Lightweight yet extremely durable, the Philips HeartStart FRx is engineered for demanding environments. It withstands rough handling, extreme temperatures, dust, and wet conditions. It can endure weights up to 500 kg (1,100 lbs) and survive drops from 1.2 meters (4 ft).

Simplified Maintenance

The pre-connected SMART Pads II work for both adults and children. Once installed, the FRx performs automatic daily, weekly, and monthly self-tests to verify pad readiness and system functionality. The battery provides up to four years of standby life (when stored and maintained according to the Owner’s Manual).

Specifications

General

• Model Number: 861304
• Waveform: Truncated Exponential Biphasic; parameters automatically adjusted according to patient impedance

Therapy

• Adult Defibrillation: 32A (150J nominal) into 50 ohms
• Pediatric Defibrillation (with Infant/Child Key): 19A (50J nominal) into 50 ohms

Protocol

Preconfigured defibrillation and CPR protocols. Customizable using HeartStart Event Review or HeartStart Configure software.

Quick Shock

Delivers shock typically within 8 seconds after completion of CPR interval.

Physical Characteristics

• Dimensions (H x D x W): 6 x 18 x 22 cm (2.4 x 7.1 x 8.9 in)
• Weight with battery and pads case: 1.5 kg (3.5 lbs)
• Weight without battery or pads case: 1.2 kg (2.6 lbs)

Environmental Specifications

• Operating / Standby Temperature: 0° – 50° C (32° – 122° F)
• EMI Compliance: CISPR II Group I Class B, IEC 61000-4-3, IEC 61000-4-8
• Water & Dust Protection: IPX5 (IEC 60529)
• Altitude: 0 – 15,000 feet
• Aircraft Compliance: RTCA/DO-160D (1997)
• Crush Resistance: Up to 500 lbs
• Vibration: Meets MILSTD 810F standards (operating & standby)
