MELAtherm 20 Instrument Washer-Disinfector

MOD: 27874-03
  • Call for price

Brand:MELAG


Related Documents
Description

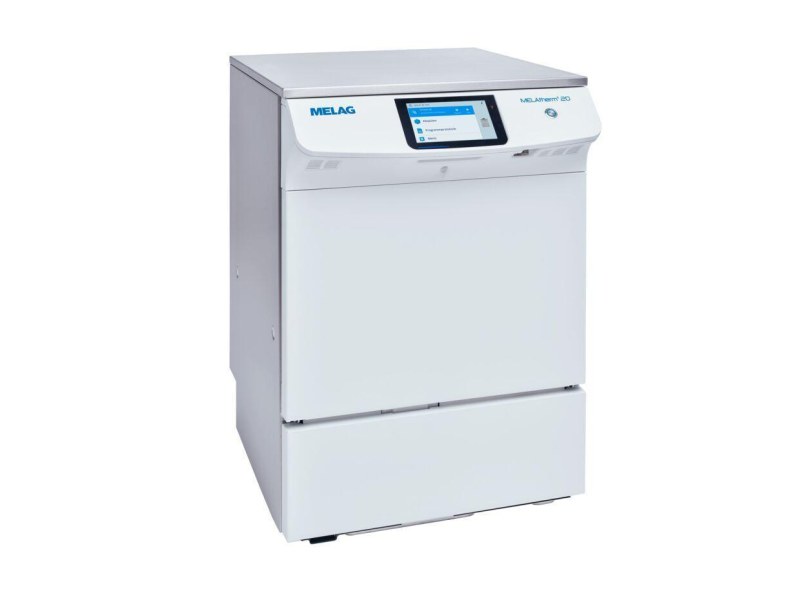

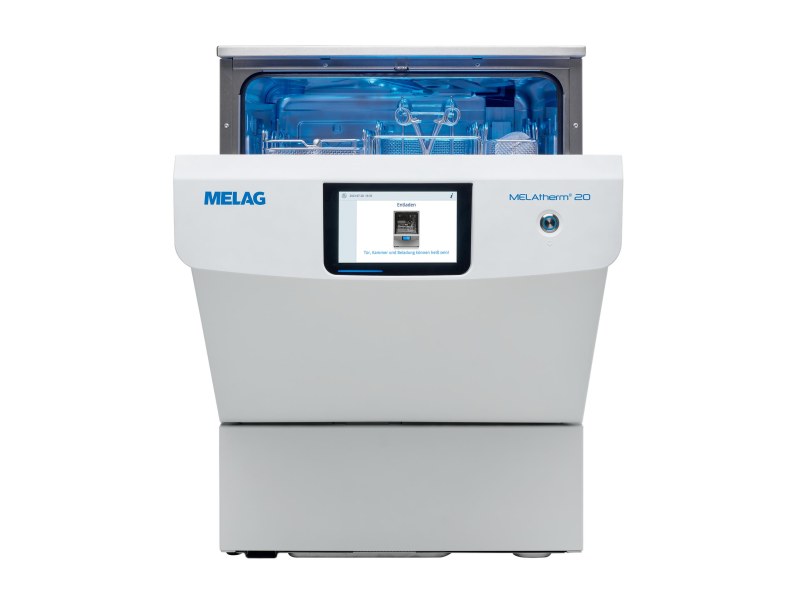

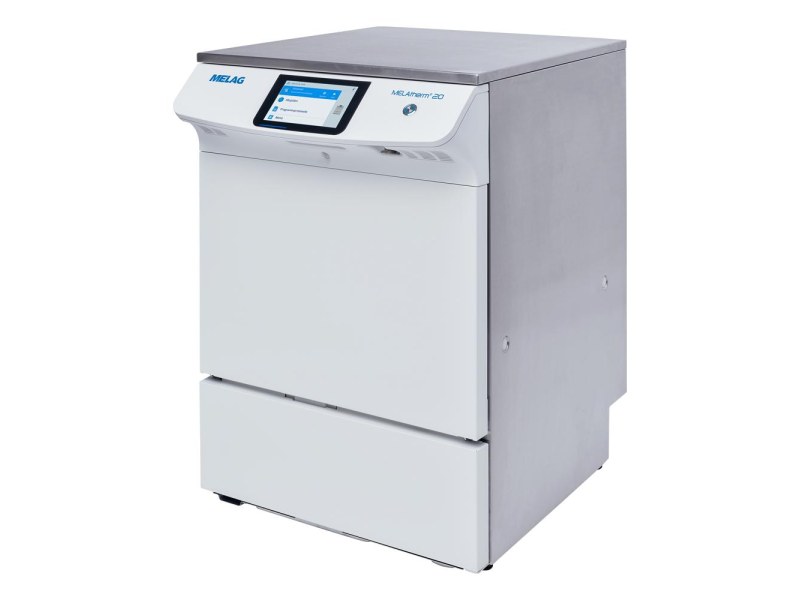

MELAtherm 20 Instrument Washer-Disinfector

All the magic of MELAtherm in XXL

More performance. More possibilities. More MELAtherm.

With an extra-large 160 l washing chamber, smart operating and documentation concepts as well as a newly developed rinsing arm system for up to 63 % better cleaning results*, MELAtherm 20 is ready for any challenge - today and in the future. Whether with 230 V or 400 V, passiveDRY or activeDRY: MELAtherm 20 with a range of over 90 accessories adapts flexibly to your requirements and enables the efficient reprocessing of instruments for up to 90 patients per batch. Wash away limits – experience the true benefits of MELAtherm 20.

Key Features

  • XXL 160 L Washing Chamber Equipped with 2 loading levels in the upper and lower baskets and compatible with over 90 accessories for maximum flexibility.
  • AquaBoost Technology Delivers up to 63% better cleaning performance compared to the MELAtherm® 10 Evolution.
  • Independent Service Network Supported by more than 1,300 qualified technicians, ensuring fast service and excellent value for money.
  • Flexible Drying Systems Available with active internal and external drying (activeDRY) or automatic door opening (passiveDRY) to suit your workflow.
  • XXL Smart-Touch Display Large, intuitive touchscreen for easy operation, from program selection to digital documentation.
  • ProControl Batch Approval Enables digital batch approval and documentation via network (LAN) or USB.

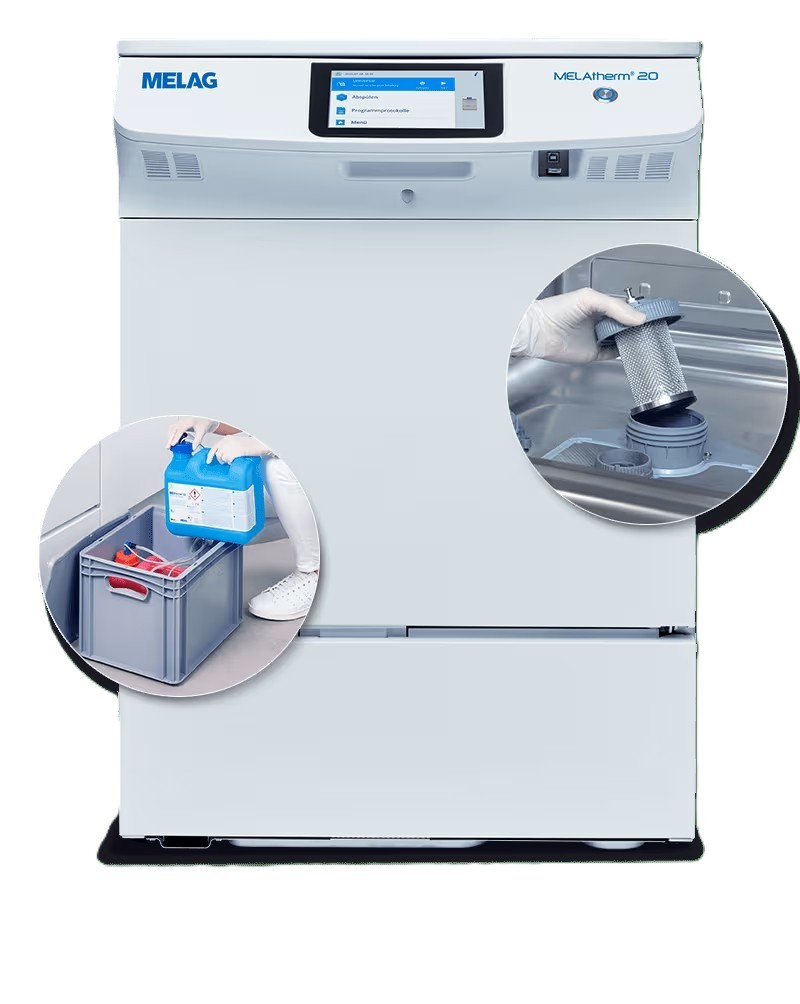

  • Cleanfinity Pro (Optional) Self-cleaning central filter that reduces maintenance and saves valuable working time.
  • Extended Maintenance Intervals Maintenance required only every 24 months or 1,000 operating cycles, minimizing downtime and operating costs.
  •
side image

More space. More accessories. More WOW!

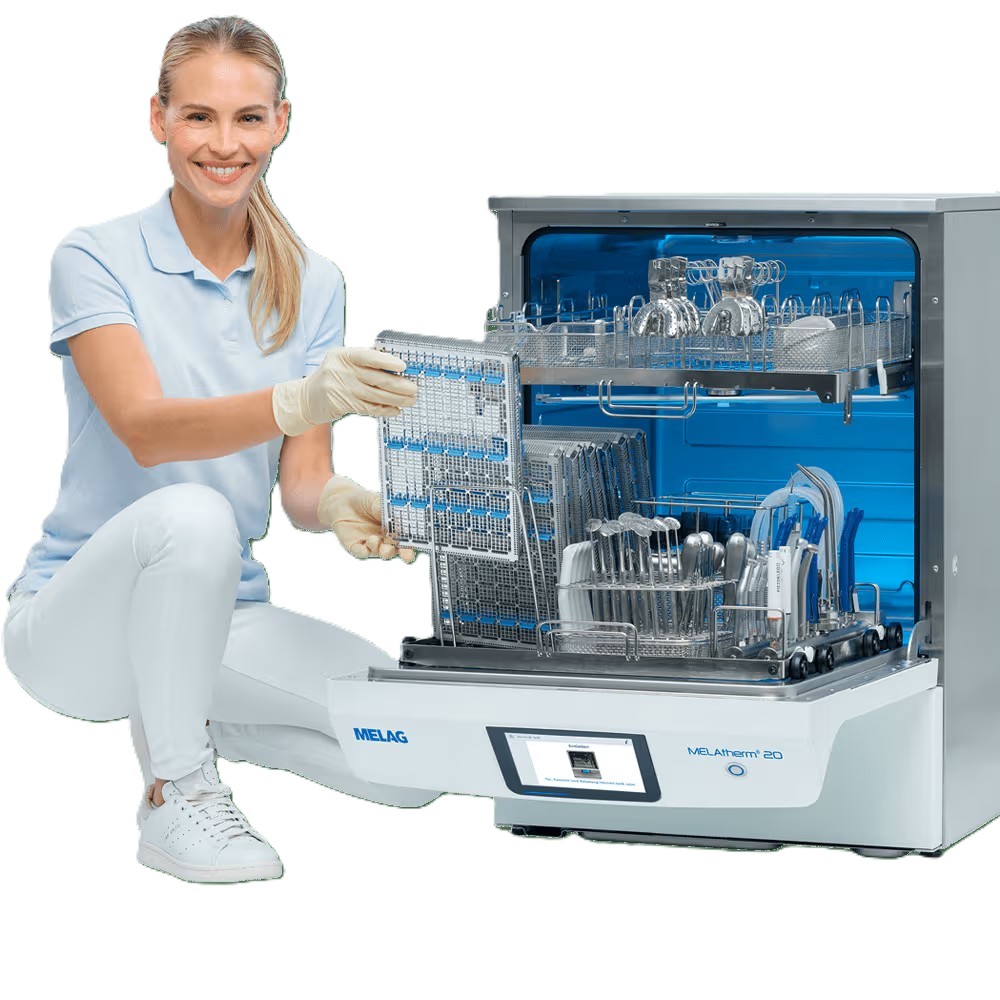

With up to 24 flex segments in the lower basket and upper basket, MELAtherm 20 offers more than double the capacity of its predecessor, enabling efficient reprocessing of instruments for up to 90 patients per cycle (with typical dental loads).

For up to 90 patients


Bold Ideas. Spotless Performance.

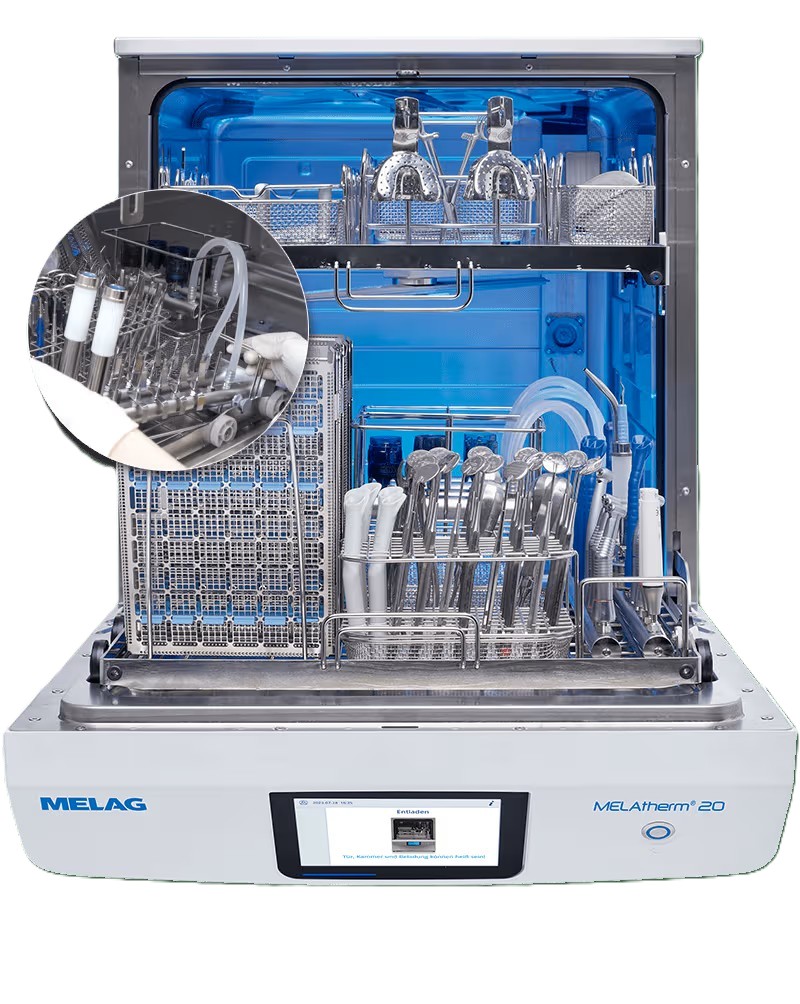

With MELAtherm 20, you are entering a new dimension of cleaning performance and capacity. Thanks to the powerful AquaBoost Technology and a newly developed three-arm rinse system, MELAtherm 20 delivers up to 63% better cleaning results compared to MELAtherm 10 Evolution (based on the ÖGSV guideline 3a). But MELAtherm 20 doesn’t just outperform in cleaning results, the new washer-disinfector also plays in the big league of capacity: With more than 90 compatible baskets, adapters, and a smartly configurable XXL chamber design, MELAtherm 20 grows with your daily demands and enables the efficient reprocessing of instruments for up to 90 patients per cycle. Whether rigid or hollow-body instruments – efficiency is key: The integrated, easily removable module with two injector rails offers 22 dedicated connections for the safe and reliable reprocessing of hollow instruments.

side image


side image

Magical operation. As simple as your smartphone.

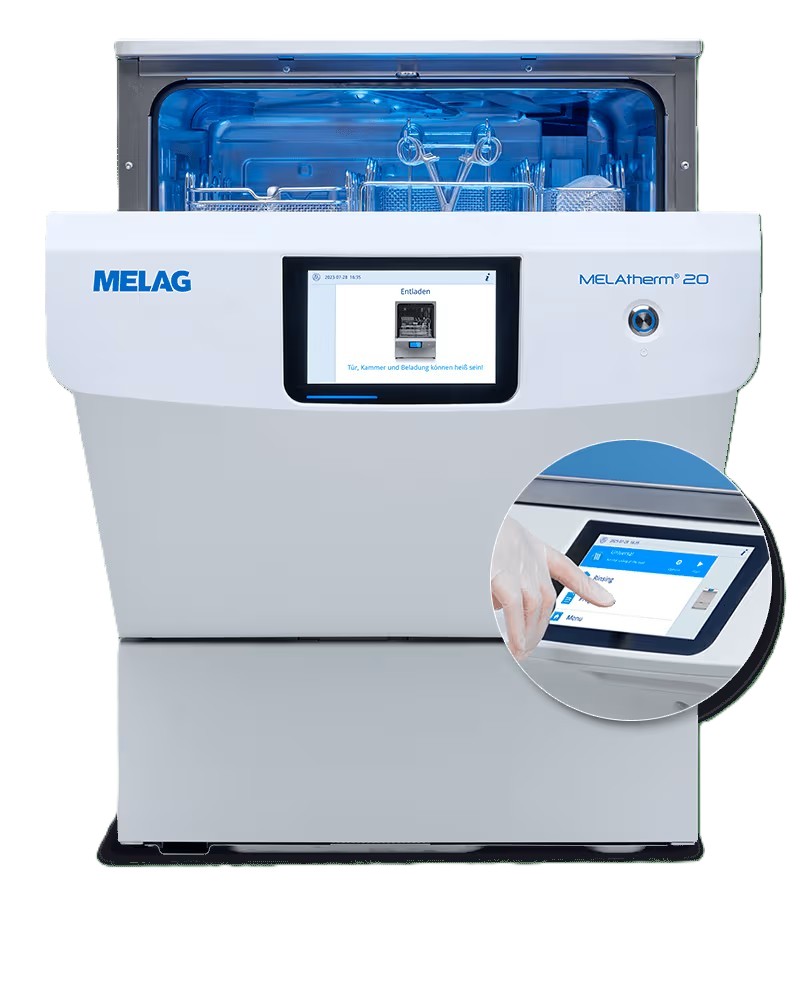

The large Smart-Touch Display on the device door makes operation as simple as using a smartphone – crisp, bright, and perfectly aligned with the MELAG system solution. From program selection to seamless documentation via USB or network: Everything is magically simple – simply magical. And thanks to the integrated user authentication and batch approval with ProControl, you can finally say goodbye to paperwork – and embrace fully digital documentation and approval processes. And what makes it truly a big difference: No additional software. No license fees. No compromises. Everything comes standard – fully integrated into MELAtherm 20 at no extra cost.

4 models. Endless possibilities

More variety. More you. With no fewer than four appliance variants, MELAtherm 20 can be precisely customised to your individual practice requirements: Choose between the activeDRY drying system for active internal and external drying or passiveDRY with automatic door opening and steam condensation - each available with 230 V or 400 V. But that's not all - the workflow can be customised even further with our wide range of accessories: The self-cleaning central filter Cleanfinity Pro protects your sensitive hollow body instruments, while the MediaGuard storage box protects your cabinets from process agents - for a workflow that is as individual as your practice.

side image

 Technical Specifications

  • Device Dimensions (W × H × D): 59.8 × 81.8 (83.6**) × 73 cm
  • Installation: Suitable for installation under a 60 cm countertop
  • Washing Chamber Capacity:160 L
  • Chamber Dimensions (W × H × D): 50.9 × 51.1 × 53.9 cm

Weight

  • passiveDRY Version:74 kg (82 kg**)
  • activeDRY Version:78 kg (86 kg**)

Electrical Connection – 400 V Version (DTA)

  • Voltage: 318–415 V AC, 3N~, 50 Hz
  • Fuse Protection: 3 × 16 A
  • Power Consumption:9.1 kW

Electrical Connection – 230 V Version (DTB)

  • Voltage: 220–240 V AC, 50 Hz
  • Fuse Protection: 1 × 16 A
  • Power Consumption:2.9 kW

MELAdem® 53 / 53 C Water Treatment Unit

  • Dimensions: Ø 24 × 57 cm (61.5 cm including the connection elbow) or Ø 24 × 44.3 cm (48.8 cm)

** Values shown in parentheses refer to special device configurations of the unit.
