Portable Wireless Ultrasound Scanner Medbridge Echo Wave VPA-15 Dual Phased Array/ Vaginal

MedBridge
Portable Wireless Ultrasound Scanner Medbridge Echo Wave VPA-15 Dual Phased Array/ Vaginal

Click on an image to open Gallery

MOD: 18972-03
15-30 days
  • Price: 4,960.00€
  • 4,000.00€ + TAX 24%

Brand:MedBridge


Description

Portable Wireless Ultrasound Scanner Medbridge Echo Wave VPA-15 Dual Phased Array/ Vaginal

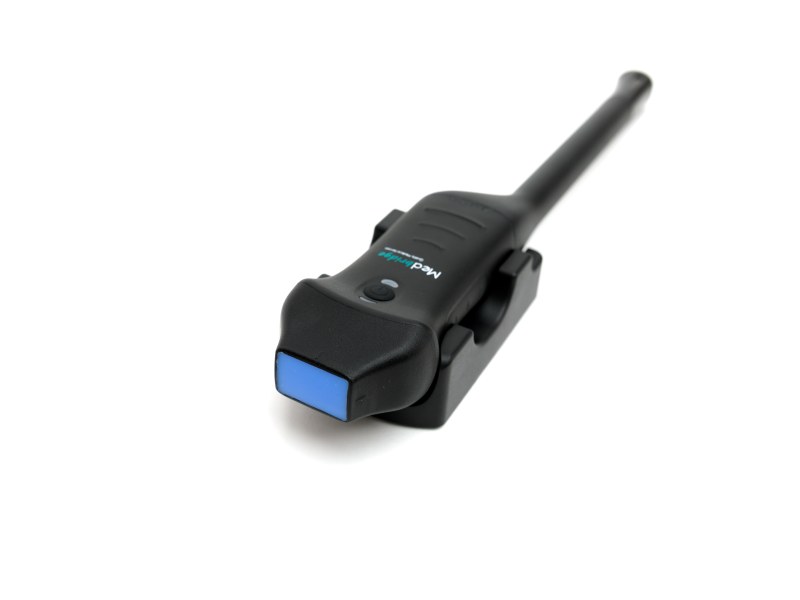

MedBridge Echo Wave VPA-15 combines a Phase Array and vaginal probe, making it an extremely versatile and comprehensive tool for the modern gynecologist. It covers a wide range of diagnostic and monitoring applications in daily clinical practice.

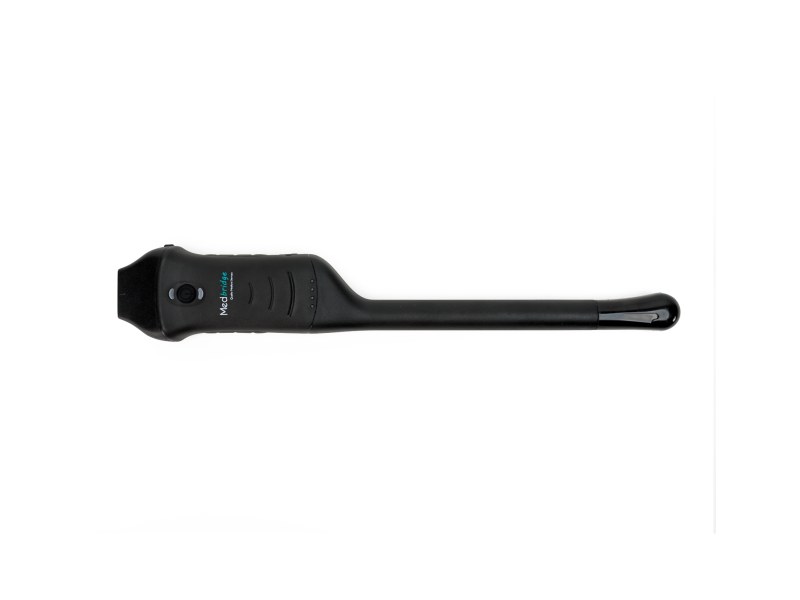

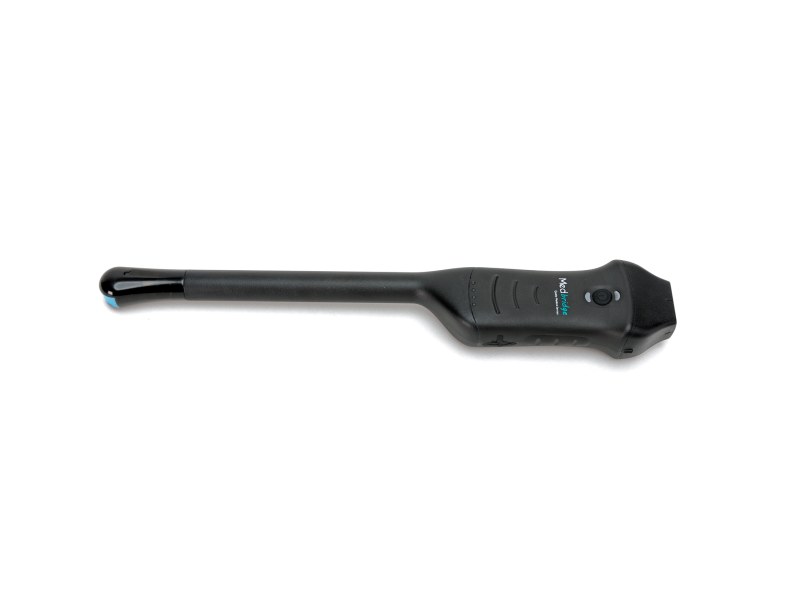

The vaginal probe provides high-resolution imaging of the uterus, ovaries, and endometrium, ideal for:

  • Early pregnancy detection
  • Ovulation monitoring
  • Infertility evaluation
  • Assessment of pathologies such as fibroids or cysts
  • Investigation of cycle or endometrial abnormalities

The Phase Array probe offers deeper imaging capability with a narrow beam, suitable for:

  • Transabdominal fetal examination in advanced stages of pregnancy
  • Maternal cardiac assessment in emergency cases or NICU/ICU

The wireless design provides full freedom of movement, reduces preparation time, and minimizes the risk of contamination. Connection to portable devices (tablet or smartphone) allows immediate storage, processing, sharing of images, and integration into electronic medical records.

Using a single device that integrates two probes reduces costs, saves space, and makes the examination process faster and more efficient.

Overall, the MedBridge Echo Wave VPA-15 is an accurate and flexible diagnostic tool, perfectly adapted to gynecological and obstetric care needs.Overall, the Echo Wave CB-20 is an ergonomic, efficient, and technologically advanced diagnostic tool for the modern physician.

Advantages & Uses

  • Vaginal imaging: uterus, ovaries, endometrium
  • Transabdominal fetal examination
  • Maternal cardiac assessment
  • Wireless operation & portability: suitable for office, delivery room, ICU/NICU, home visits
  • Rapid diagnosis and immediate documentation






Imaging Functions

  • Modes: B Mode, B+B Mode, B+M Mode, M Mode
  • Doppler: Color Doppler, Power Doppler, Pulse Wave Mode
  • Measurements: Angle, Area, Automatic Vessel Flow Measurement, Circumference, Distance, Heart Rate, Length, Time, Trace, Velocity, Volume



Technical Specifications

    • Probe Type: Phase Array, Vaginal
    • Transducer Type: Dual Probe
    • Elements: Dual 128
    • Frequency: 2.5–3.5 MHz, 3.2–5 MHz, 7.5–10 MHz
    • Frame Rate: 18–24 F/S
    • Convex Depth: 90–240 mm, 90–305 mm
    • Linear Depth: 20–100 mm
    • Gain: 40–110 dB
    • DICOM / PACS Support: Yes
    • Connectivity: USB, WiFi 2.4GHz (802.11n)
    • Compatible Devices: Android OS 11,12,13+, iPhone/iPad OS 14,15,16+, Windows 10+
    • Waterproof: IPX5
    • Weight: 165 g
    • Charging Type: Micro USB & Wireless Charging
    • Battery Type: 2800 mAh
    • Battery Life: Stand-by 12 hours, full operation up to 3 hours
    • Battery Replaceable: Yes, user-replaceable
    • Warranty: 6 months full accidental coverage, 1-year standard warranty

  •

    Recommended Applications

    • Gynecology
    • Obstetrics
    • Emergency Medicine
    • NICU / ICU
    • Infertility & Reproductive Medicine

  •

    Benefits

    • Portability & Ease of Use: Compact, plug & play, suitable for use outside the hospital
    • Speed & Reliability: Immediate diagnosis at the point of care
    • Cost Efficiency: Reduced equipment cost, one device with two probes
    • High Ergonomics: Comfortable handling, ease of use in clinical practice
    • Telemedicine Capability: Instant image sharing
    • Support for Monitoring & Interventional Procedures: Accurate guidance, rapid assessment
    • Critical Condition Diagnosis: FAST Scan, Lung Ultrasound, Echocardiography
    • Use of New Technologies & AI: Automatic measurements (in future versions), improved diagnostic capability
