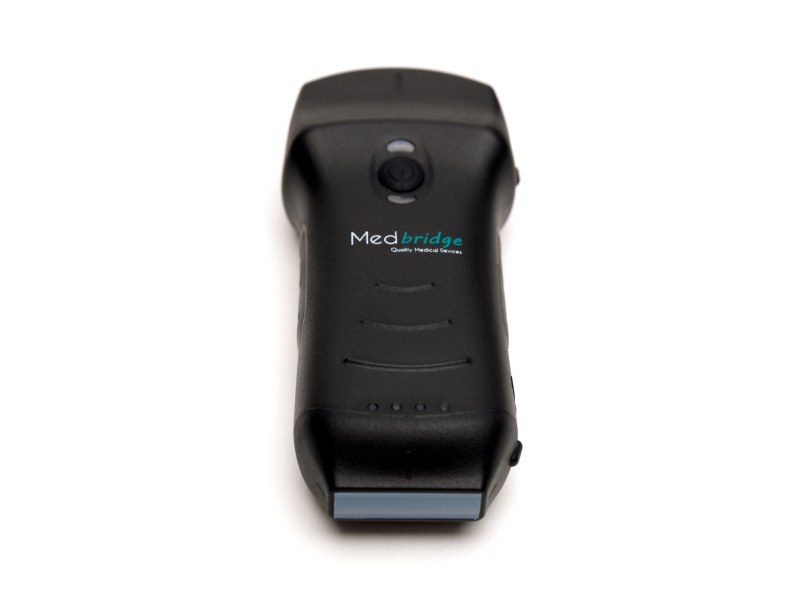

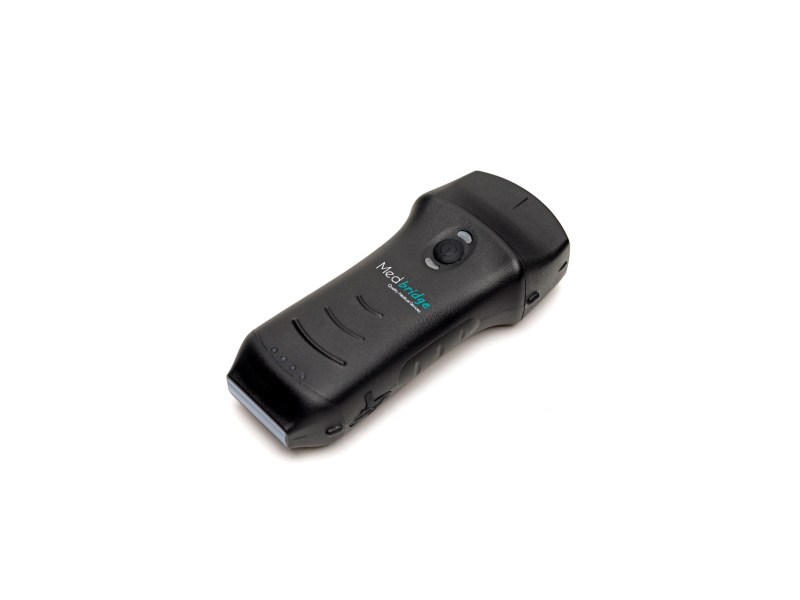

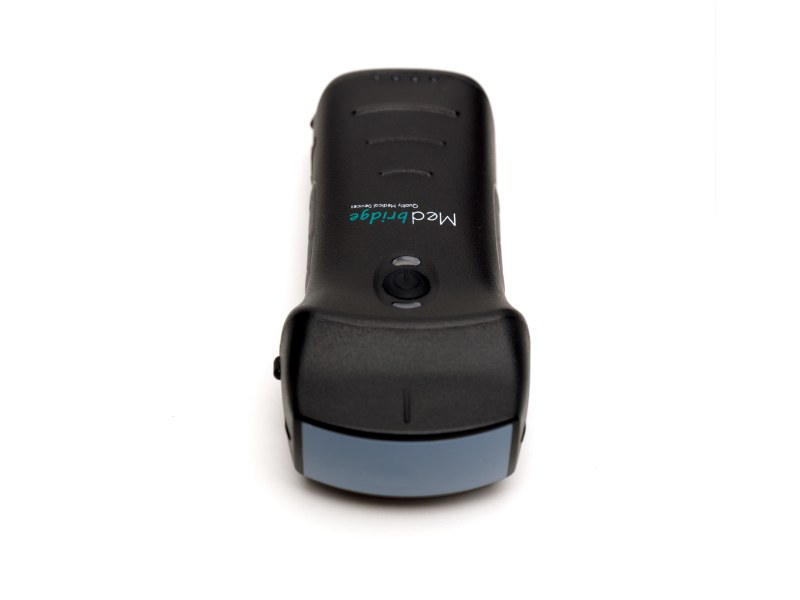

Portable Wireless Ultrasound Scanner Medbridge Echo Wave CL-D5 Dual Micro Convex / Micro Linear

MedBridge Echo Wave CL-D5 combines Convex and Linear probes in one device, offering outstanding versatility and diagnostic precision. It enables a wide range of ultrasound examinations — from abdominal and obstetric to superficial (vascular, thyroid, musculoskeletal) — without changing probes or devices.

The wireless design ensures complete freedom of movement, faster setup, and reduced contamination risk. Connection to tablets or smartphones allows instant high-resolution imaging, storage, and data sharing via DICOM or cloud systems.

By integrating two probes in one compact device, the CL-D5 saves time, space, and cost, making it ideal for clinical, hospital, or home use.

Advantages & Uses

Imaging Functions

•  Modes: B, B+B, B+M, M Mode
•  Doppler: Color, Power, Pulse Wave
•  Measurements: Angle, Area, Vessel Flow, Circumference, Distance, Heart Rate, Volume, etc.

Technical Specifications

• Probe Type: Convex / Linear
• Transducer Type: Dual Probe
• Elements: Dual 128
• Frequency: 2.5–3.5 MHz, 3.2–5 MHz, 7.5–10 MHz
• Frame Rate: 18–24 F/S
• Depth: Convex 90–305 mm / Linear 20–100 mm
• Gain: 40–110 dB
• DICOM / PACS: Yes
• Connectivity: USB, WiFi 2.4GHz (802.11n)
• Compatible Devices: Android, iOS, Windows
• Waterproof: IPX5
• Weight: 165 g
• Battery: 2800 mAh, up to 3 hours continuous use, user-replaceable

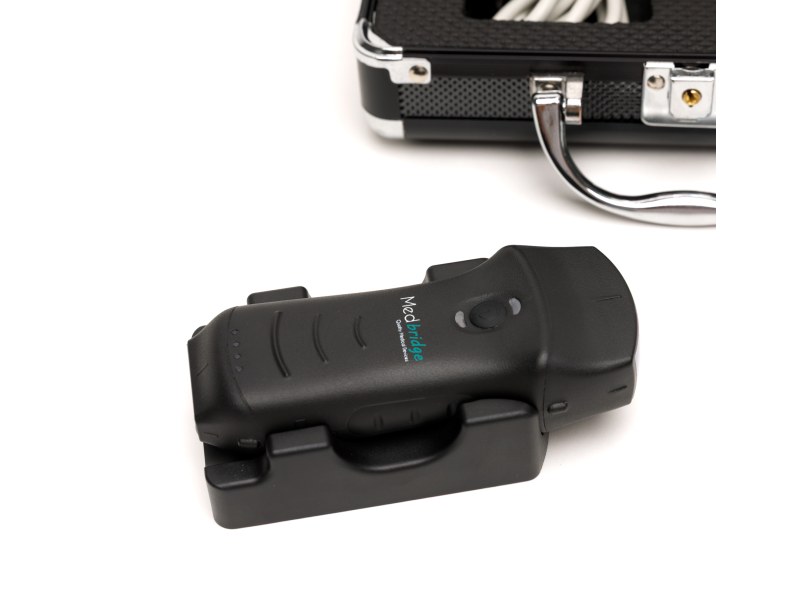

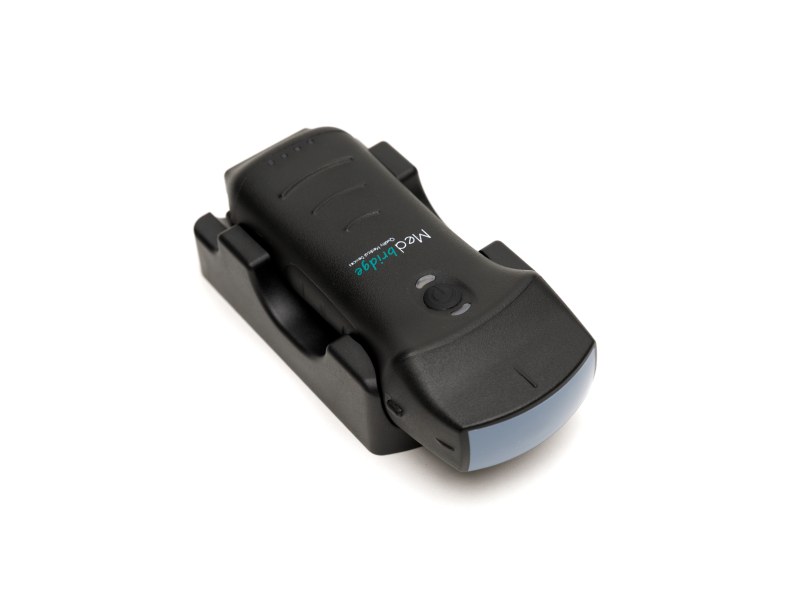

• Charging: Micro USB & Wireless
• Warranty: 6 months full accidental coverage, 1-year standard

Recommended Applications

• Vascular Surgery
• Anesthesiology
• Obstetrics & Gynecology
• Orthopedics
• Emergency Medicine
• Veterinary
• Internal Medicine
• Radiology

Benefits

• Portability & Ease of Use: Lightweight, compact, wireless
• Speed & Accuracy: Real-time diagnosis at point of care
• Cost Efficiency: One device – dual probe
• Telemedicine Ready: Instant image sharing and remote diagnosis
• Critical Case Diagnosis: FAST Scan, Lung Ultrasound, Echocardiography
• AI & Smart Features: Automatic measurements (upcoming versions)
