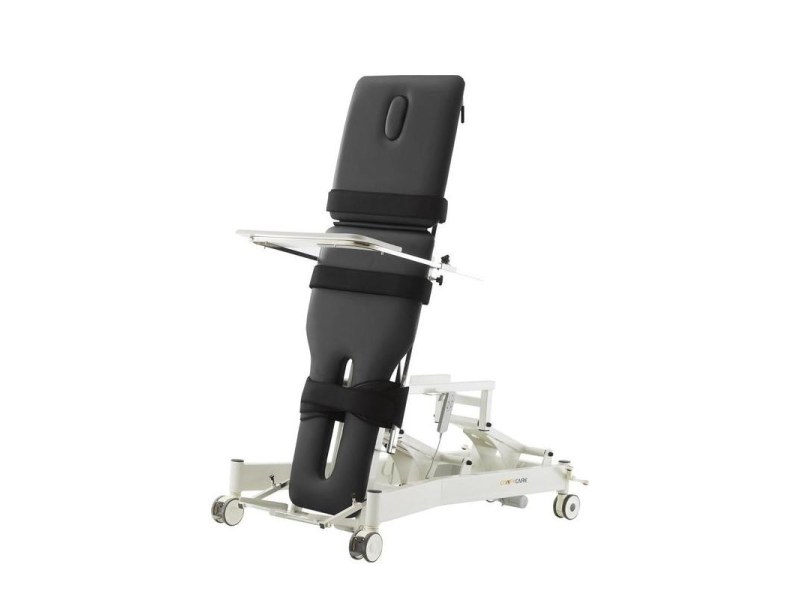

Electric Examination Table TILT

Electric tilt table designed for neurorehabilitation therapies, equipped with safety straps. Features dual motors controlling height adjustment and vertical tilt.

Design & Functions

• Electric height and tilt adjustment via hand controller
• Integrated tilt angle inclinometer
• Activity tray and patient safety straps included
• Head section with face hole and plug
• Sleek design with rounded frame legs for enhanced safety
• Ground brake for stability on uneven surfaces
• Ø125mm retractable castors for easy mobility and safety
• Reliable TiMOTION motor

Technical Specifications

• Height range: 57 cm to 104 cm
• Headrest angle: 0° to +75°
• Tilt angle: -2° to +85°
• Footrest angle: -10° to +20°
• Padding thickness: 5 cm
• Foam density: 36 kg/m³
• Upholstery: Heavy-duty PVC vinyl, resistant to fire, stains, mildew, oil, water, and wear
• Certifications: CE, FDA, ISO 13485:2016
• Weight capacity: up to 250 kg

Warranty

• 1 year warranty on frame, electrical components, and upholstery (excluding misuse)
