Abdominal aortic Tourniquet with 2 compression devices

The SAM Junctional Tourniquet (SJT) is a medical device designed to control severe bleeding in the groin and armpit areas, where conventional tourniquets may be ineffective. It can also be used to stabilize pelvic fractures.

Features:

• Application in less than 25 seconds.
• Two Target Compression Devices (TCDs) for bilateral blood flow occlusion.
• AUTOSTOP buckle system with audible and tactile feedback.
• Removable manual inflation pump.
• Can also be used to stabilize pelvic fractures.

Technical Specifications:

• Model: JT400-EN (Deluxe).
• Compression devices: 2 × Target Compression Devices (TCDs).

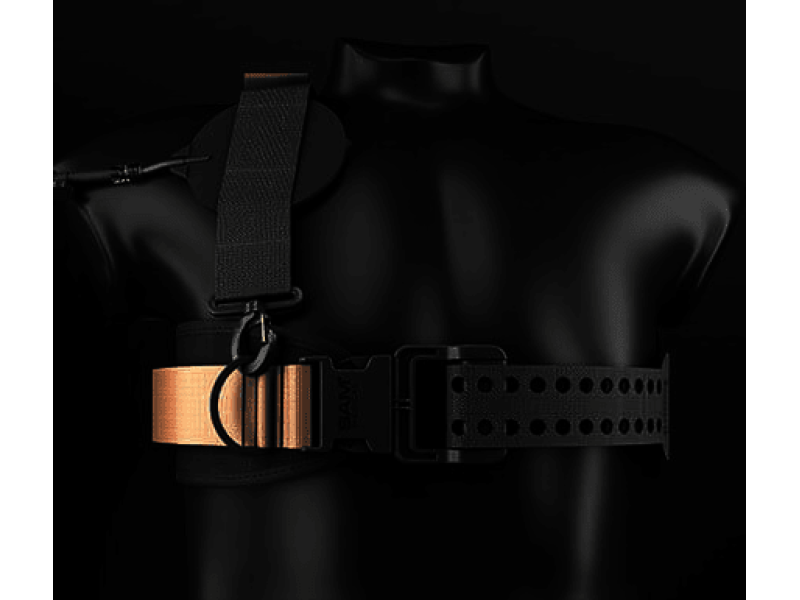

• Accessories: 1 TCD extension, 1 manual inflation pump, 1 auxiliary strap, and 1 carrying case.
• Packaged dimensions: 12.1 × 12.1 × 22.5 cm.
• Weight: Approximately 680 g, including packaging.
• Strap tension: 150 N to activate the AUTOSTOP mechanism.
• TCD inflation: Using the manual pump or a syringe with a Luer-lock connection.
• Radiolucency: Compatible with X-ray and CT imaging, except for the two stainless-steel buckle springs.

Tighten with confidence

 The Patented SAM® AUTOSTOP buckle acts to ensure all slack is removed prior to TCD inflation. Once optimal compressive force is reached, two prongs activate, clicking to confirm correct application. The buckle is secured in place with its Velcro® system strap.

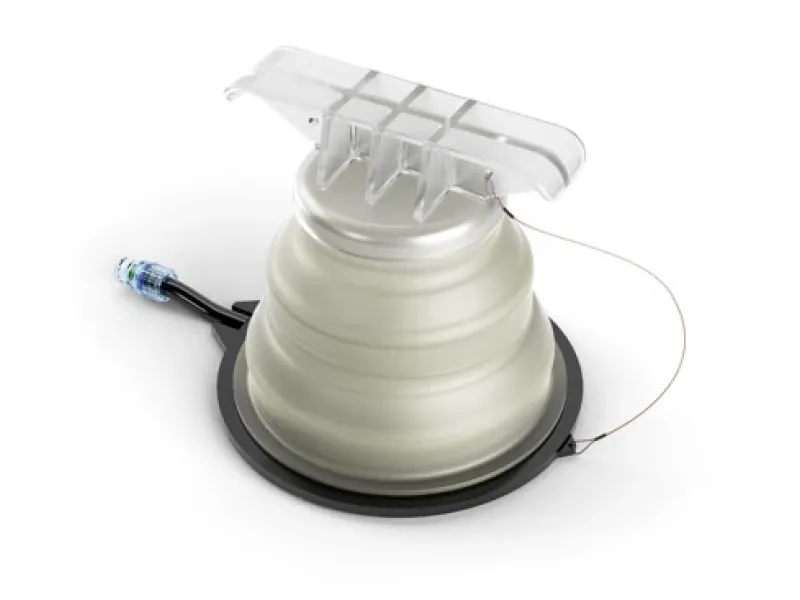

Target compression device

SJT’s Target Compression Device (TCD) quickly inflates with a removable hand pump or any luer lock syringe, minimizing blood loss. Two TCDs can be used to occlude blood flow bilaterally.
