Description

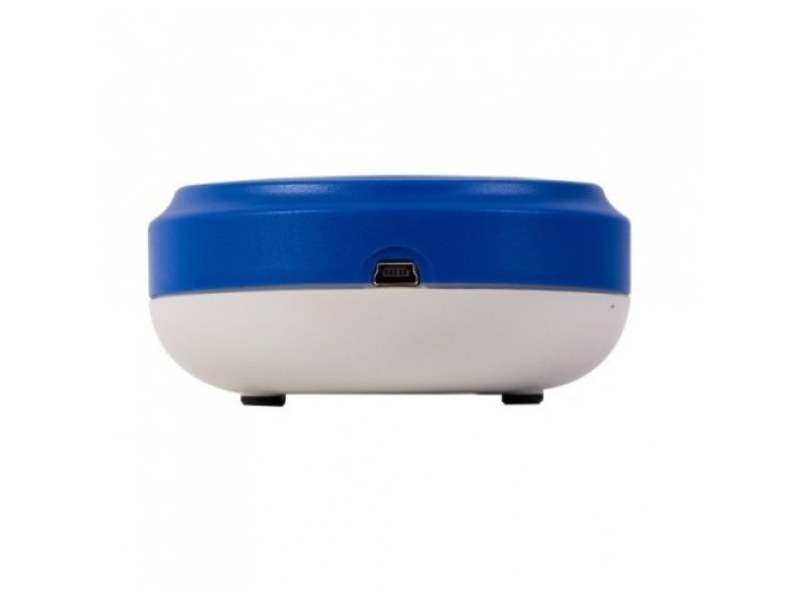

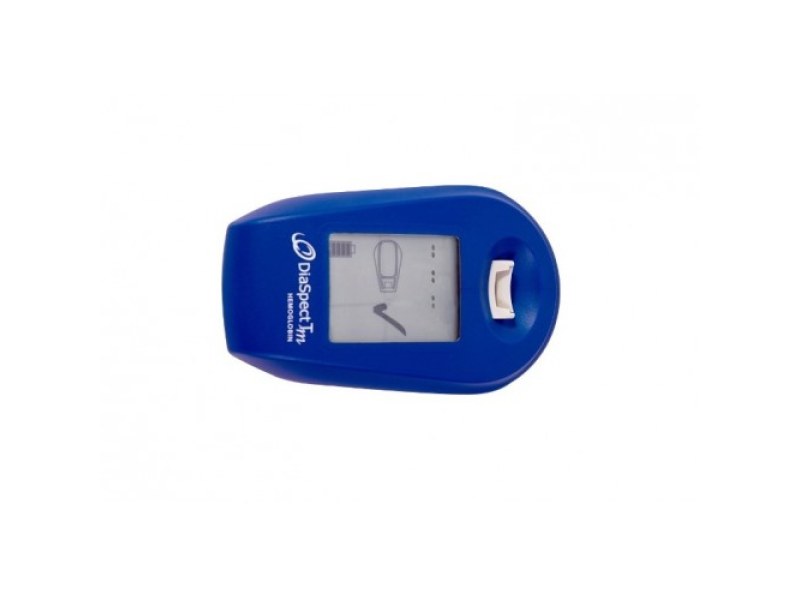

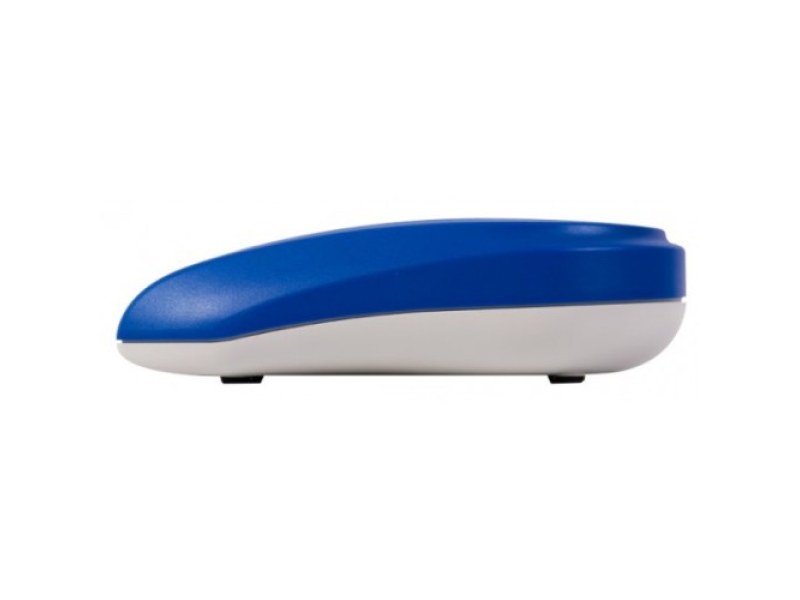

Diaspect TM Hemoglobin Meter
Delivery contents: Hb meter, power supply unit, adapter, USB cable, operating instructions
The DiaSpect TM is a haemoglobinometer that provides a quick and reliable point-of-care measurement of the total haemoglobin in capillary, venous or arterial blood samples.
The compact design, low weight and simple test procedure makes this haemoglobin analyser excellent for a mobile haemoglobin test.
The haemoglobin value is quantitatively, photometrically measured with the help of a multichromatic, broad spectrum sensor.
The cuvettes used for the measurement do not have any reagents, the device is factory calibrated and the control solution can be separately purchased for confirming the functionality of the testing device.
The DiaSpect TM haemoglobinometer is equipped with an integrated, rechargeable battery that can be optionally charged with a wall charger or through a computer USB port.
Depending on the selected variant, the meter will display the results in g/dl, g/l or mmol/l.
DiaSpect TM haemoglobin analyser
For quantitative determination of the total haemoglobin in human blood
Sample material: capillary, venous or arterial blood
Sample volume: < 10 μl
Measurement time: 1-2 seconds
Measurement done with special single-use haemoglobin cuvettes
Photometric testing principle
Result display in g/dl, in g/l or in mmol/l depending on the variant
Measuring range (depending on variant): 0.3-25.5 g/dl / 0.3-255 g/l / 0.2-15.9 mmol/l
With charge level display
Integrated, rechargeable battery
"Always on" technology allows for constant usability
Device automatically switches to energy-saving mode when not in use
Data transfer via USB 2.0 port or Bluetooth interface
Can be connected to the EKF Link Middleware via Bluetooth or USB
Dimensions: 15 x 9 x 4 cm (L x W x H)
Weight: approx. 185 g
Internal memory for up to 4000 measurement results
Automatic self test after each measurement
Quality control reminder function
Simple, fast test procedure
Reliable measurement results
Take blood sample
With capillary blood, immediately fill cuvette with blood
With arterial or venous blood samples, turn the blood collection tube end over end multiple times and then draw some plood with a pipette, place a drop of blood on the hydrophobic surface (e.g. paratest) and dip the cuvette in the blood
Ensure the complete filling of the cuvette
Wipe away blood that has overflown onto the outside of the cuvette
Place filled cuvette in the cuvette holder on the DiaSpect TM until it latches
As soon as the test results are displayed, remove the cuvette and dispose of as per regulatory requirements
The checkmark symbol confirms a proper measurement–the result can be documented
